This is either as a ratio compared with that of the sun or as absolute magnitude m. The hr diagram is a key tool in tracing the evolution of stars.

Hertzsprung Russell Diagram Lab Hr Astronomy Stars By Lesson

A brief description of the h r diagram.

How to read a hr diagram. Brendon burney 2600742 views. The hr diagram is divided into colors too from the left blue white yellow orange red. This means that on a hr diagram a stars size is easy to read off once its luminosity and color are known.

Ok so now youre fairly good at reading the diagram. The hertzsprung russell diagram plots each star as a point on the diagram with absolute magnitude along the vertical scale and surface temperature along the horizontal scale. The closer to the left the hotter the star is generally the bigger star of the same letter classification will be brighter.

Lets look at why we called it a type of family portrait for stars. One is the luminosity of the stars in units or ergss normalized to the solar luminosity and the other is the temperature of the stars in kelvins. One point to be careful of when using absolute magnitude is to remember that the lower or more negative the absolute magnitude the more luminous the star.

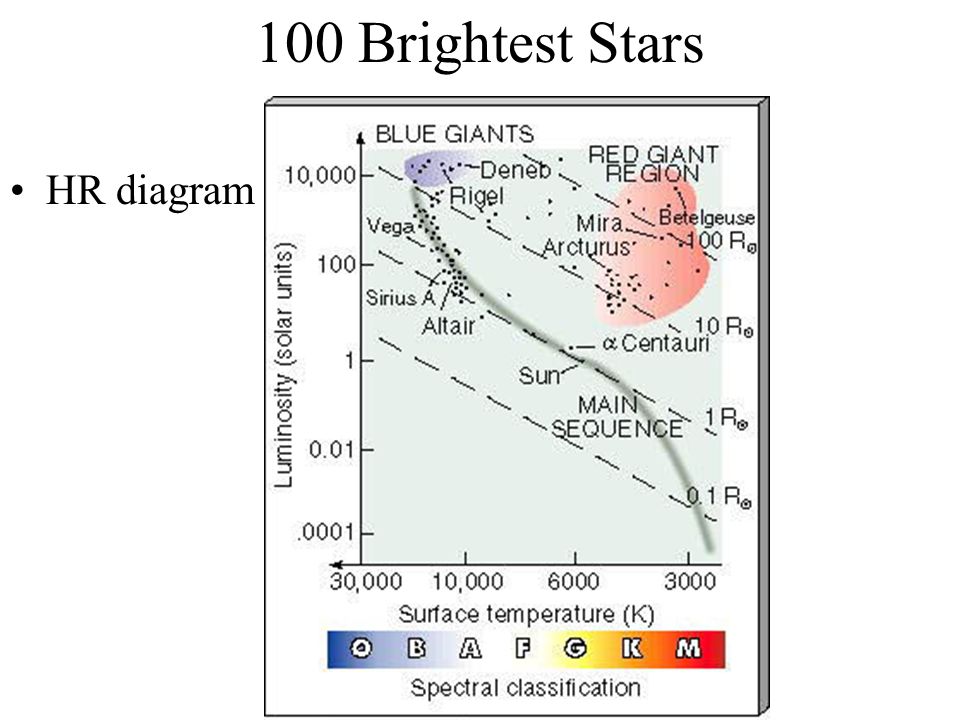

Axes on the h r diagram. The main sequence stretching from the upper left hot luminous stars to the bottom right cool faint stars dominates the hr diagram. Very bright blue stars and stars at the top right side are red supergiants cooler reddish stars.

There are 3 main regions or evolutionary stages of the hr diagram. The hr diagram is also divided into star types which are from left obafgk and m. The vertical axis displays the luminosity of the stars.

Diy amazing idea with cement how to make cement flower pots extremely easy for your garden duration. The hr diagram is named after astronomers hertzprung and russel. How to read a hertzsprung russell diagram.

Despite seeming very different both these types of star are nearing the end of their lives and are huge. The idea of the diagram is to organize two different pieces of information that astronomers can observe or infer. Stars at the top left side of the diagram are blue supergiants.

Stars begin their life on the main sequence but then evolve off into red giant phase and supergiant phase before dying as white dwarfs or some more violent endpoint. It is here that stars spend about 90 of their lives burning hydrogen into helium in their cores. In previous activities with the star life cycle the focus was on equilibrium and the battle between gravity and gas pressure to maintain a stable star.
