The steam rating in fire tube boilers doesnt exceed 2500 kg per hour and pressure is limited to 10 bars. Explains with working animations steam boilers waste heat boilers and thermal liquid heaters.

Fire Tube Boiler Parts Explained Learn About The Working Of These

Fire tube boilers are useful for small demands of steam and water tube boilers are useful for industrial level usage.

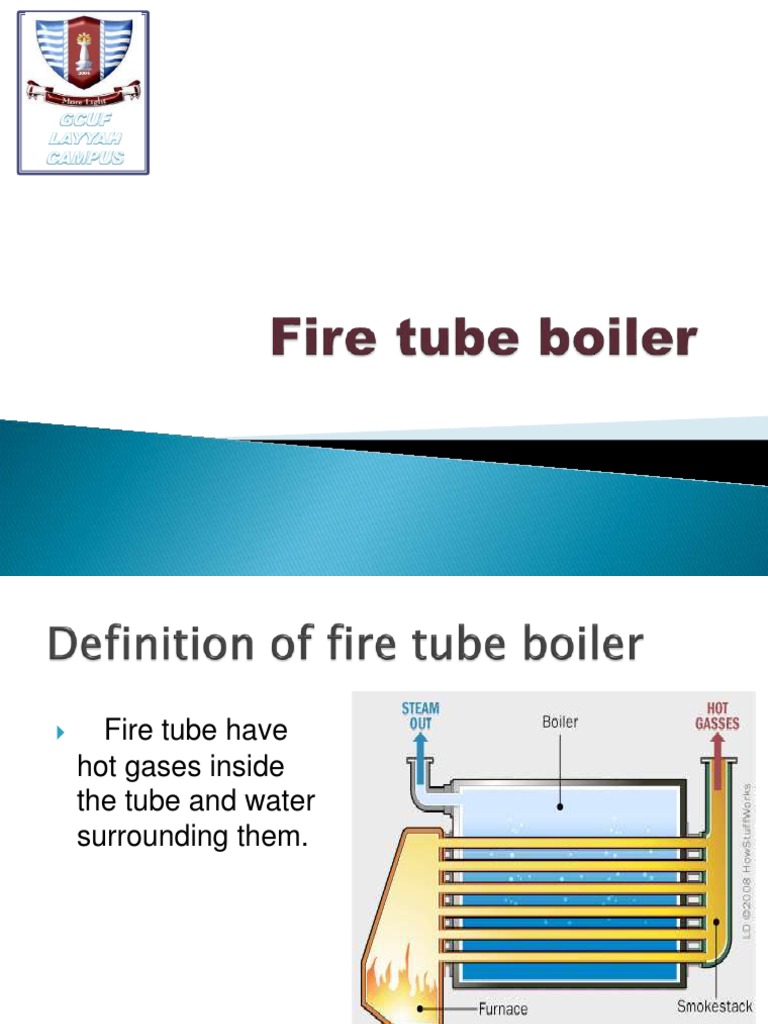

Fire tube boiler diagram. The heat of the gases is transferred through the walls of the tubes by thermal conduction heating the water and ultimately creating steam. In fire tube boiler the fuel is burnt inside a furnace. The water is present inside the tubes and the hot flue gases surrounds them.

Low water in a steam boiler boiling point duration. They are low pressure boilers. Most of the fire tube boilers now come in a complete packagethe main parts of the package are.

It was popular in 18th century. Steam boiler process flow diagram. The so called fire tube boiler is a gas produced by combustion of fuel in the fire extinguishers or smoke too header pipe fire extinguishers or smoke on the external water pipes vapor or steam mixture is heated.

It was mainly used for steam locomotive engines. The operating pressure is about 25 bar. A high pressure watertube boiler also spelled water tube and water tube is a type of boiler in which water circulates in tubes heated externally by the fire.

A fire tube boiler is a type of boiler in which hot gases pass from a fire through one or many more tubes running through a sealed container of water. Fire tube boiler consists of a vertical cylindrical shell equipped with a fire box in the bottom water space in the middle portion and steam space in the upper portion. Learn about boiler designs advantages and disadvantages etc.

These boilers are mainly used in. Fuel is burned inside the furnace creating hot gas which heats water in the steam generating tubes. To cut short the main purpose of boiler is to boil a liquid mostly the water in order to generate the steam for serving the purpose of heating a building or running an equipment through pressurized steam or pressurized water.

Operation of fire tube boiler is as simple as its construction. The most basic type of a package boiler is single passage three pass design. One such boiler is shown in the figure.

2016 12 15 jenny wu 0. Fire tube boiler is one of the most basic types of boiler and the design is also very old. They are high pressure boilers and the operating pressure is about 165 bar.

Fire tube boilers are a portable boiler and it requires a small floor space. In this boiler the hot flue gases is present inside the tubes and water surrounds them.
