Jeep Liberty Evap System Diagram

The evap emission control system prevents the escape of fuel vapors from a vehicles fuel system. Many times you can cut the bad end off and re attach.

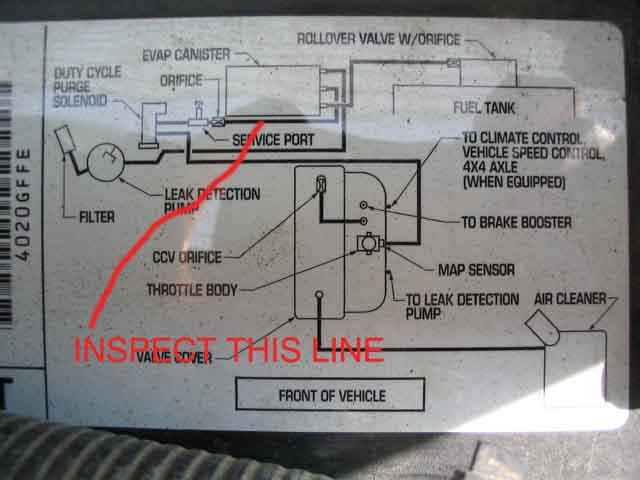

Open Hose By Evap Canister P0455 Jeepforum Com

If there is a large leak itll throw p0455.

Jeep liberty evap system diagram. Take a look between the drivers fender and manifold for a green colored cap attached to black lines. After running a diagnostics test on a 2002 jeep liberty if you get the code p0442 that means you have an evaporative emission control system evap leak detected which is just a small leak but a leak nonetheless. The evap system consists of many parts including but not limited to the gas cap fuel lines carbon canister purge valve and other hoses.

When there is a small leak in the jeep libertys evap system it will throw the p0456 obdii code. 1a auto has a large selection of evaporative evap emission control system parts for your jeep liberty including vapor canister purge vent solenoid valves and leak detection pumps at great prices. System small leak evaporative emission system.

The evaporative emissions evap canister contains a charcoal element for the filtering of hydrocarbons and the filtered carbon dioxide co2 is then vented to atmosphere when the vehicle is not in operation. Shop for replacement automotive evap emission system parts for your jeep liberty online or call us at 888 844 3393 and order today. The evaporative emissions evap control system prevents the evaporation of unburned fuel vapors hydrocarbons from being released into the atmosphere.

This indicates that a part of the evap control system is no longer fuctioning correctly. Thats the evap test port the rubber hoses that connect the plastic pipes near there will crack and cause the leak. This video will show you how to smoke test the evap leak to find the problem spot inside the vehicle.

The evap system captures all fuel vapor from the fuel tank and sends them to the engines intake in order to be ignited in the normal combustion process. Astral auto repairs 28934 views. 2002 jeep grand cherokee p0456 evap system leak detected very small leak duration.

The last evap leak i found on a wrangler was under the hood. Evap leak codes p0422 p0455 on a jeep liberty.
