Stack exchange network consists of 175 qa communities including stack overflow the largest most trusted online community for developers to learn share their knowledge and build their careers. Butterfly diagram of 4 point fft.
The Fast Fourier Transform And Dct Too Ppt Video Online Download
This is how you get the computational savings in the fft.
4 point fft butterfly diagram. Signed fixed point word. These are the expression of radix 4 fft algorithms. The equations are taken from the textbook on digital signal processing by proakis et al.

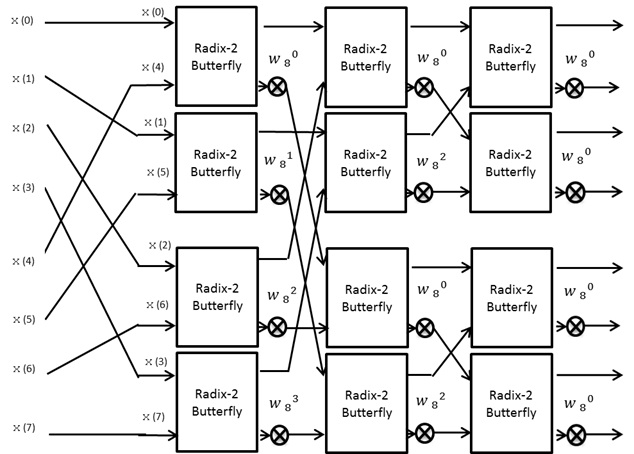

Butterfly diagram of 8 point fft. Building of the butterfly diagram for a 4 point dft using the decimation in time fft algorithm. An example based on the butterfly diagram for a 4 point dft using the decimation in time fft algorithm.
Note that each butterfly involves three complex multiplications since w n 0 1 and 12 complex additions. Scribed with vhdl and synthesized on the same state of the art standard cell asic technology than the proposed radix 24 butterfly units. Therefore the number of complex multiplications is 3n4log 4 n and number of complex additions is 12nlog 4 n.
So there are a total of 42 8 multiplies. An example based on the butterfly diagram for a 4 point dft using the decimation in time fft. In the context of fast fourier transform algorithms a butterfly is a portion of the computation that combines the results of smaller discrete fourier transforms dfts into a larger dft or vice versa breaking a larger dft up into subtransforms.

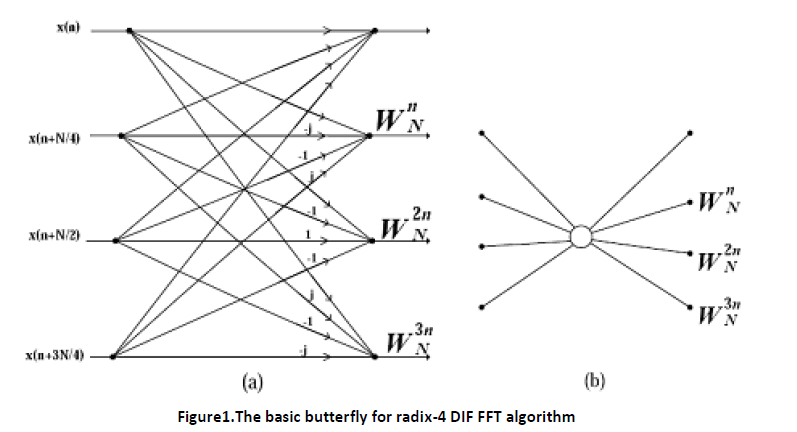

In the 4 input diagram above there are 4 butterflies. Explanation of musical staff with analog frequencies of notes. The radix 4 butterfly is depicted in figure tc39a and in a more compact form in figure tc39b.

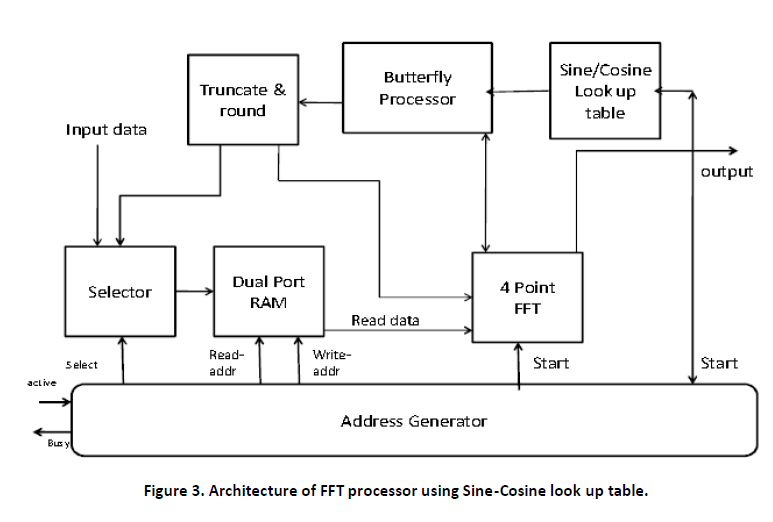

Butterfly unit supporting radix 4 and radix 2 fft. The block diagram representation of fft architecture design is shown in fig. The output results are.
The name butterfly comes from the shape of the data flow diagram in the radix 2 case as described below. Of the calpoly electrical engineering dept and are used in ee 228 302342 328368. The radix 4 butterfly contains 3 complex multiplications and 12 complex additions n4 butterfly involves in each stage and number of stage is log 4 n for n point sequence.
The log is base 2 as described earlier. The most important element in fft processor is a butterfly structure. Notes on signals systems.

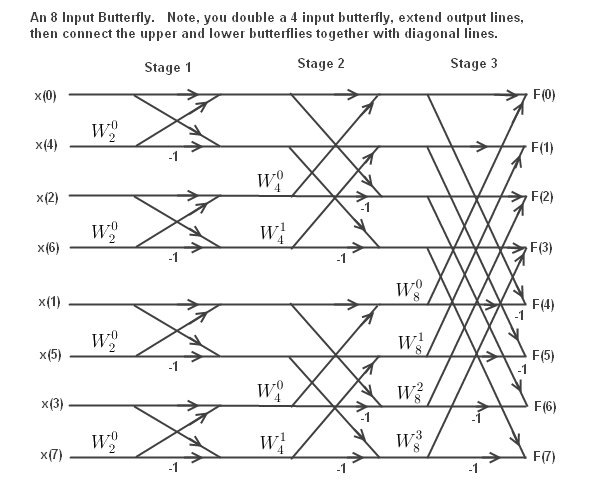

In the next part i provide an 8 input butterfly example for completeness. Fft processor architecture a. 4 log4 8.
The expression for combining the n4 point dfts defines a radix 4 decimation in time butterfly which can be expressed in matrix form as. These notes were created by dr. It takes two signed fixed point data from memory register and computes the fft algorithm.
