Force analysis of a pendulum. Show that at small angles the restoring force is proportional to the displacement.
Pendulum Free Body Diagram Festival Collections
Be sure to include a free body diagram.
Free body diagram of pendulum. Free body diagram pendulum. A coordinate axis system is sketched on the diagram and the force of gravity is resolved into two components that lie along these axes. The components of the gravitational force are also shown.
The rod is rigid and without mass. The reason that b is correct and a is not is because the forces are applied at point o. The diagram at the right shows the pendulum bob at a position to the right of its equilibrium position and midway to the point of maximum displacement.

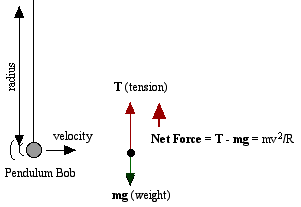

The mass at the end of the rod may be considered a particle of mass m. 6 the free body diagram of the pendulum bob shows the gravitational force mg the tension force t and the centripetal acceleration ac. 2r t mgcosθ mv2r 1 where v is the velocity of the bob and ac is the centripetal acceleration.
Show that at small angles the restoring force is proportional to the displacement. Find the equation of motion of this pendulum by taking the time rate of change of the angular momentum computed with respect to the pivot. To balance the system in the vertical at the point if origin by most efficient means the initial fx will be negative to the left and the fz will be negative down at point o.
Draw a free body diagram for the pendulum shown in the figure above. Free body diagram of pendulum 1 the problem statement all variables and given known data i am asked to draw a free body diagram of a pendulum and a bob with it s maximum amplitude of pendulum motion physicsclassroom free body diagrams riverboat the diagram at the right shows the pendulum bob at a position to the right of its equilibrium position and midway. There is no force applied at m.
