2004 Chevy Silverado Emergency Brake Cable Diagram

Brake cable assemblies are tested for strength fit and corrosion resistance. The parking brakes on a chevrolet silverado are located on the rear wheels only.

Solved 1988 Chevrolet Silverado Rear Brake Assembly Fixya

You must use precision and caution when replacing a parking brake cable as.

2004 chevy silverado emergency brake cable diagram. This main cable is also comprised of a front cable and an intermediate one. Looking for a 2004 chevrolet silverado 1500 parking brake cable. I checked the emergency brake release and found a small nut like metal piece on the floor of the floorboard directly below the brake.

When i tried released my emergency brake to leave in my 2000 chevrolet silverado pick up the emergency brake release handle pulled back but did not return back. They activate when a system of cables forces a pair of brake shoes out against the inside of a drum. Get yours at wholesale prices and free shipping over 50 only here at autopartswarehouse.

Chevy silverado 2004 element3 parking brake cable by raybestos. Pg plus brake cable designs are the most technically advanced in the marketplace today. The drum a part of the.

There is a front cable attached to the e brake pedal an. This design is used on almost all gm trucks and suvs. On the 04 chevy silverado theirs cable equilizers that stable your cables of your parking brakes check to see if those arent loose or damaged in anyway if so replace if not remove the rear wheels and use a brake spoon to spin the.

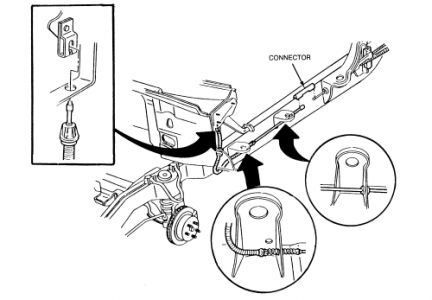

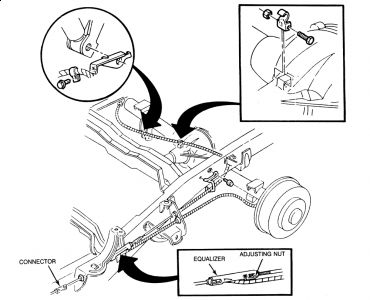

Does anyone have a emergency brake cable routing diagram for a 2004 chevy silverado 1500 i need a diagram from the e brake on back i installed the new emergency brake assembly and i am about 12 in short of getting the nut to start at the equalizer then i looked why and right after you put the cable in the firewall there are two eyelets that i missed and i am pretty sure that is where my. How do i adjust the rear parking brake on a 2004 chevy silverado 2500 hd 4x4 chevrolet 2004 silverado question. Attached to the wheel hub assembly the shoes are an o shaped unit connected by clips and springs.

Emergency break cable broke on 2004 silverado. If you have noticed significantly less resistance when you engage the lever or pedal this is one of the most common indications that the cable is wearing down. The main parking brake cable on a chevy silverado truck is connected to the parking brake pedal and is routed through to a bracket that connects the two rear cables.

The chevy silverado 1500 brake cable is activated by the hand lever or foot pedal in the cabin which is what allow you to engage the parking brake. The parking emergency brake cable rusted apart on my 1999 chevy silverado truck.
