When the section of a beam is involved the centroid or center of mass and moment of inertia are usually the most important properties of the beam which need to be considered. Shear and bending moment diagrams are analytical tools used in conjunction with structural analysis to help perform structural design by determining the value of shear force and bending moment at a given point of a structural element such as a beam.

How To Draw Bending Moment Diagrams Skyciv

As shown in figure below.

How to draw shear force and bending moment diagram. When drawing a bending moment diagram. The calculations are only set to draw the shear force and bending moment of a beam at the moment. Shear force and bending moment diagram of simply supported beam can be drawn by first calculating value of shear force and bending moment.

First find reactions of simply supported beam. Once you have the reactions draw your free body diagram and shear force diagram underneath the beam. From left to right make cuts before and after each reactionload.

Starting at x 0 we will move across the beam and calculate the bending moment at each point. Uniformly distributed load udl here is a summary. These instructions will help you to calculate and draw shear and bending moment diagram as well as draw the resulting deflection.

To calculate the bending moment of a beam we must work in the same way we did for the shear force diagram. Centroid of a beam section. Moment of inertia of a beam section.

When drawing a shear force diagram if you are dealing with a point force points ac and f in the above diagram work out the shear force before and after the point. Both of the reactions will be equal. The course covers shear force and bending moment diagram review method of superposition moment area method force method displacement method slope deflection method 3 moment equation and.

If you need a free frame calculator or free truss calculator there are a range of other free tools available at skyciv. The method indicates the concept used for bending. Shear force and bending moment values are calculated at supports and at points where load varies.

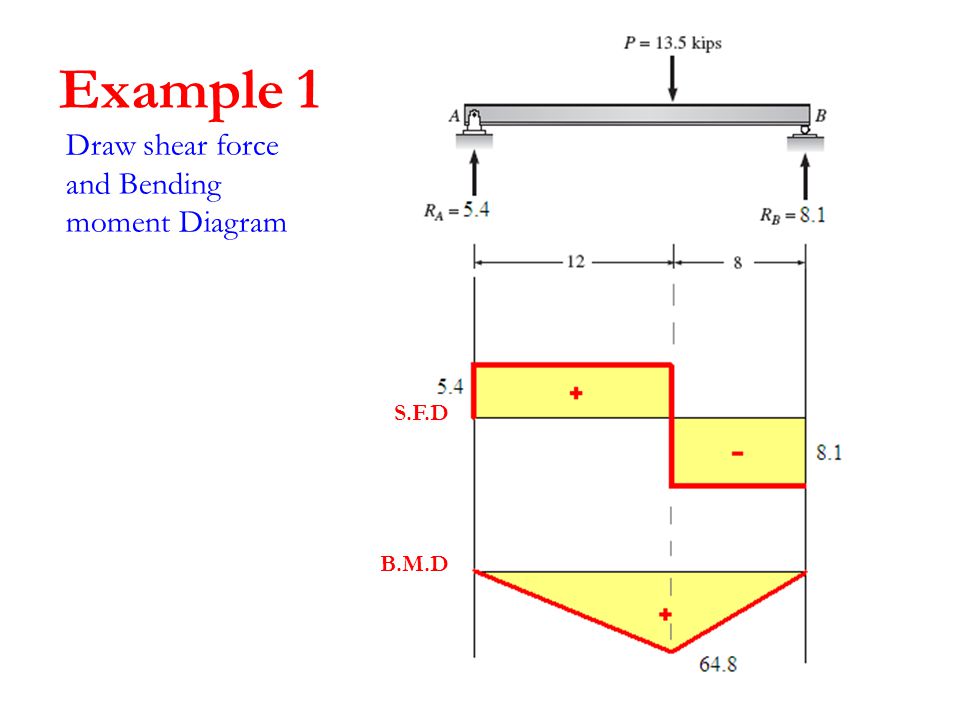

This is a tutorial to make shear force diagram and bending moment diagram easily for a simply supported beam loaded with concentrated loads. Simply supported beam with point load example. Knowing how to calculate and draw these diagrams are important for any engineer that deals with any type of structure because it is critical to know where large amounts of loads and bending are taking place on a beam so that you can make sure your structure can hold the load.

Otherwise for points b and d just work it out right at that point. Finally calculating the moments can be done in the following steps. Draw shear force and bending moment diagram of simply supported beam carrying point load.
