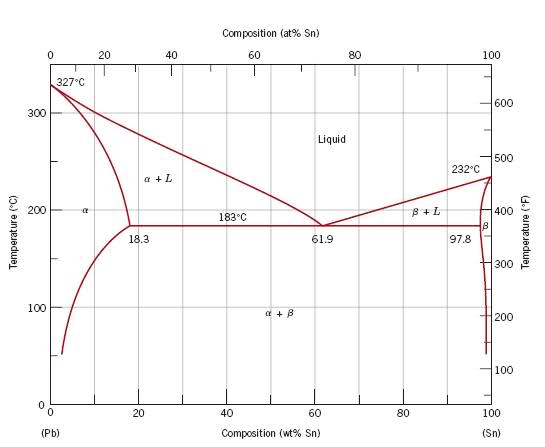

Pb Sn Phase Diagram
By sharing the data and referring to the phase diagram in connect the points of the experimental data to construct the entire diagram. You draw a graph of the temperature at which freezing first starts against the proportion of tin and lead in the mixture.
Using the phase diagram.
Pb sn phase diagram. A 346 pb sn alloy is cooled just below the eutectic. Constructing the phase diagram. Pbsn 1 major species are printed bold face.
It is also known as pressure temperature or p t diagram. That corresponds to a set of conditions in the area of the phase diagram labeled as molten tin and lead. Thats the mixture from the first cooling curve plotted above.
Microstructural component a component of the microstructure that has an identifiable characteristic morphology that developed due to its composition and thermal treatment. Introduction to materials science chapter 9 phase diagrams university of tennessee dept. What is the composition of each phase.
Of materials science and engineering 8 a phase diagrams show what phases exist at equilibrium and what phase transformations we can expect when we change one of the parameters of the system t p composition. Solubility limit introduction solutions solid solutions solute atoms dissolve in the solvent to form a solid solution a single phase mixtures more than one phase. How much of each phase do we get.
Suppose you have a mixture of 67 lead and 33 tin. The other six compositions. Now consider what happens if you cool that mixture.
Alloy phase diagrams 9 1988 144 152 h. Phase diagrams computational thermodynamics. Two phases exist along each of the three phase.
Report requirements 1 draw the experimental pb sn phase diagram. Phase diagrams one component system the simplest phase diagram is the water which is a one component system. The only unusual thing is that you draw the temperature scale at each end of the diagram instead of only at the left.
Phase equilibria 16 1995 416 429 calculated invariant equilibria. 2 determine the composition of the alloy from the cooling curve and the phase diagram. Phase diagrams phase a phase b nickel atom copper atom chapter 9 2 phase equilibria.
In the pb sn phase diagram pb is component a and sn is component b. You start from data obtained from the cooling curves. Suppose it is at a temperature of 300c.
