Ro Booster Pump Installation Diagram

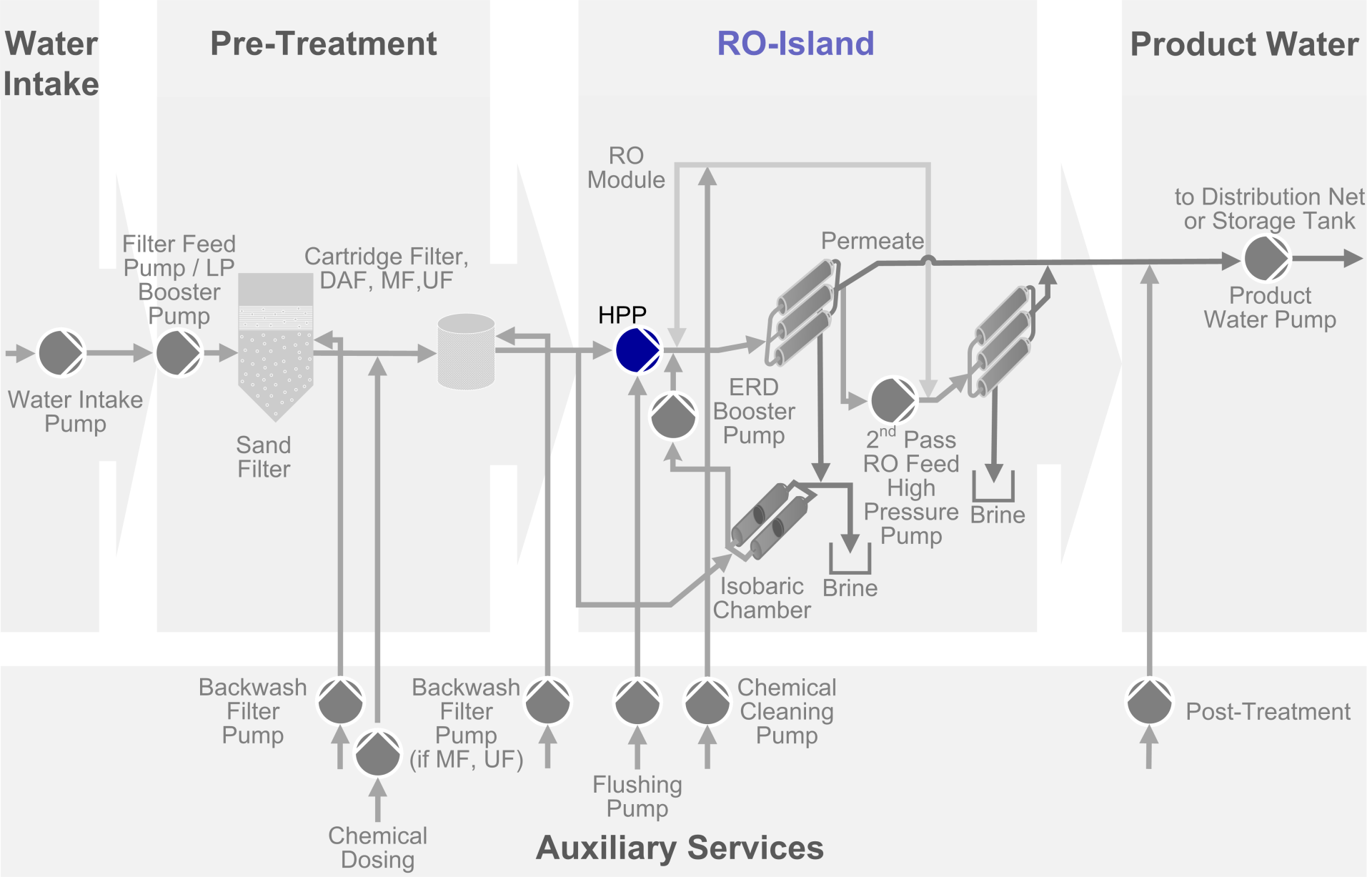

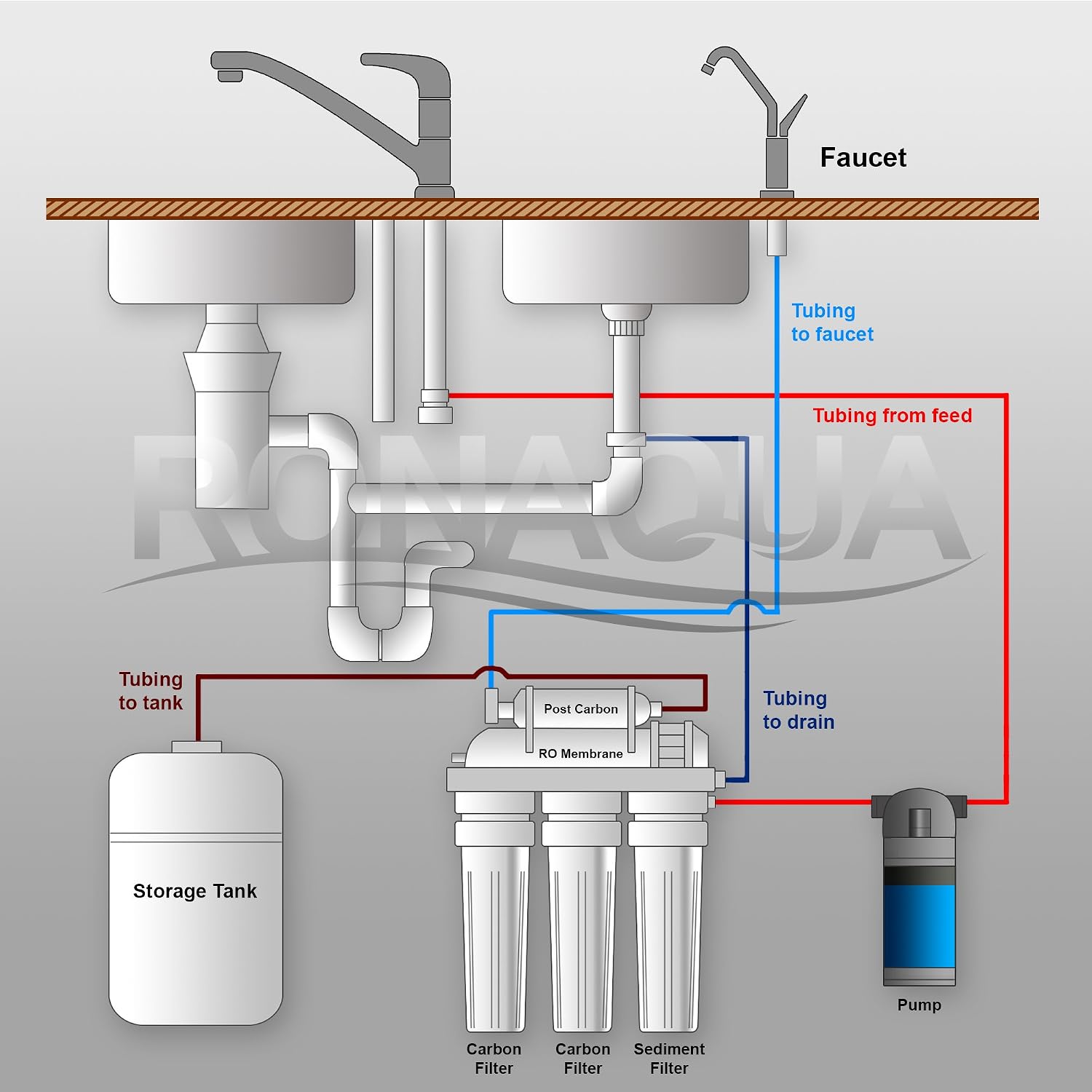

Install the pump directly in the ro feed line see diagrams below following these guidelines. Reverse osmosis booster pump installation diagram.
Aquatec Ro Booster Pumps By Pure Water Products Pure Water
Residnetial ro systems work with diaphragm booster pumps that will typically increase the feed pressure upto 75 100 psi.
Ro booster pump installation diagram. The aquatech booster pump is compatible with all brs rodi systems and most others. Click to share on twitter opens in new window. Installation service manual system requirements working pressure.
Instructions for installing model pwboost05kt low flow booster pump kit package contents. Hey folks in this how to video i show how aquafx has made it simple as simple can be to install a booster pump to increase your psi coming from the tap and make your rodi unit run more. 1 booster pump 1 transformer installation 1.
Booster pumps will increase the amount of pressure that is available to feed your rodi systems membrane. The ro unit then pressure builds up between the unit and the pump. Booster pump installation troubleshooting guide the booster pump comes with the following components and works as follows.
We have a ro system with booster pump assembly. 40 to 80 psi feed water pressure required if below 40 psi a booster pump is needed. Hooking up a booster pump is pretty simple with basic knowledge of your rodi system.
Turn off incoming water to reverse osmosis unit. A sediment filter should always protect the pump large particulate matter in water. The tap water runs thru an in line sediment filter to keep dirty water from.
How to install a aquatec 8800 booster pump to a spectrapure 5 stage 90 gpd rodi filter system. This is h2o distributors detailed step by step instructions and a reverse osmosis diagram for installing a standard reverse osmosis water purification system. If tank is equipped with ball valve close valve.
Instructions for the installation of an aquatec booster pump on a reverse osmosis water filter. How to install a ro booster pump. Diagram for reverse osmosis booster pump h2o distributors how ro booster pumps work reverse osmosis system w booster pump installation guide purepro reverse osmosis diaphragm booster pump.
How to install a ro booster pump. If the input pressure is above 80 psi you must put a pressure regulator to reduce the pressure below 80 psi. An flash animated version of this guide and exploded diagram of a typical reverse osmosis system are also provided.
Lift handle on faucet to drain the wa ter from system and storage tank.
