D Flip Flop State Diagram

Similarly when q0 and q1the flip flop is said to be in clear state. Hence a d flip flop is similar to sr flip flop in which the two inputs are complement to each other so there will be no chance of any intermediate state occurs.

Logisim How Do I Transition From One State To Another With D Flip

The clock has to be high for the inputs to get active.

D flip flop state diagram. Edge triggered flip flop state table state diagram. The s input is given with d input and the r input is given with inverted d input. Thus d flip flop is a controlled bi stable latch where the clock signal is the control signal.

No cable box required. What happens during the entire high part of clock can affect eventual. Similarly a flip flop with two nand gates can be formed.

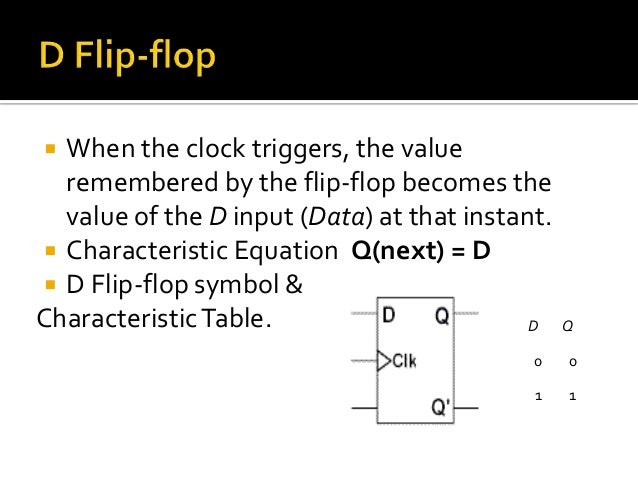

Flip flops state tables diagrams. State diagram of sequential circuit using d flip flopहनद. D flip flop is simpler in terms of wiring connection compared to jk flip flop.

Flip flop electronics when used in a finite state machine the output and next state depend not only on its current input but also on its current state and hence previous inputs. Race around condition in j k flip flop duration. It can also be used for counting of pulses and for synchronizing variably timed input signals to some reference timing signal.

Edge triggered flip flop contrast to pulse triggered sr flip flop pulse triggered. In this diagram a state is represented by a circle and the transition between states is indicated by directed lines or arcs connecting the circles. Whenever the clock signal is low the input is never going to affect the output state.

In addition to graphical symbols tables or equations flip flops can also be represented graphically by a state diagram. Read input while clock is 1 change output when the clock goes to 0. If there are changes in the data during period when the clock pulse is at its high level the logic state at q changes in sympathy with d and only remembers the last input state that occurred during the clock pulse period rt in fig.

A d flip flop is constructed by modifying an sr flip flop. 532 also illustrates a possible problem with the level triggered d type flip flop. The future of live tv with 70 channels.

A tutorial on state diagram state table and fsm part1. The flip flop consists of two useful states the set and the clear statewhen q1 and q0 the flip flop is said to be in set state. The truth table and logic diagram is shown below.

A flip flop is a type of circuit that contains twostates and are often used to store stateinformation by sending a signal to the flip flop the state canbe changed flip flops are used in a number ofelectronics including computers andcommunications equipment there were a number.

Solved Design The Controller Whose State Diagram Is Below
