Payne automatic shutoff valve with quick connect fittings. You will notice that two of the fittings are marked with an in and out.

Amazon Com Apec Water Systems Auto Shut Off Valve Replacement Part

Plastic reverse osmosis tanks.

Reverse osmosis auto shut off valve diagram. If the cold water shut off valve can not turn off the water the main water supply to the house must be shut off for the installation. The function of the shutoff valve on undersink reverse osmosis units is to stop the flow of water into the unit when the storage tank is full. Reverse osmosis repair auto shut off check valve water filter gxrm10g ge drain running.

Auto shut off ro 1 automatic shutoff valve for reverse osmosis systems. Metal reverse osmosis tanks. Reverse osmosis auto shut off valve with 14 inlet and outlet tube ports for systems that have a storage tank or float shut off.

Reverse osmosis tanks size chart. Reverse osmosis auto shutoff valve and check valve. Reverse osmosis systems shut off valves.

Ro tanks accessories. Pentair filter wrenches orings and brackets. Reverse osmosis auto shut off valve with 14 inlet and outlet tube ports for systems that have a storage tank or float shut off.

Ro automatic shut off valves aso hydronamic engineering check valves. The top side of the valve is the high pressure side and the bottom side is the low pressure side. The out connects to the inlet to the membrane housing the end of the membrane housing with only one water line.

This video explains the function of an automatic shut off valve aso as well as how to assemble and disassemble or take apart the valve for a reverse osmosis system. These valves a utomatically turns off the water production when the unit reaches a full tank. The in is the high pressure side from the prefilters.

These parts monitor the pressure inside the tank and when the tank is already full it shuts off the water that goes into the reverse osmosis membrane. A unique leak prevention system from watts that detects leaks and turns off the water supply when moisture is detected under the sink. The auto shut off valve uses the back pressure amount created by the float valve.

Welcome to water filtration systems. Amtrol reverse osmosis tanks. John guest check valves.

Automatic shut off valve aso diagram for reverse osmosis system shuts off waste water from exiting the ro system for a video on how to install this valve go to. How to install an automatic shut of valve on your. Shut off valve installation instructions.

Another option is to use a self piercing saddle valve from apec or from a local hardware store. Aso asv easy to use 14 od tube jaco connectors included. The in out markings are on the top of the valve.

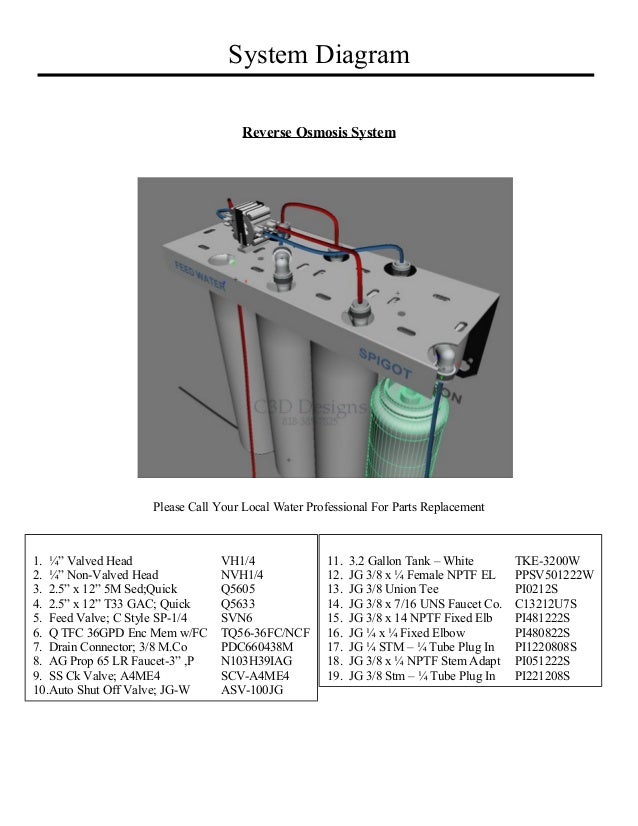

Manual For Installation Of Undersink Reverse Osmosis System
