Oil tank piping diagram. Nfpa 31 fuel oil piping installation and testing chapter 8 fuel piping systems and components 81 scope. The system is very versatile. A particular tank can be pumped out either by a direct suction line or through another line by use of a cross over.

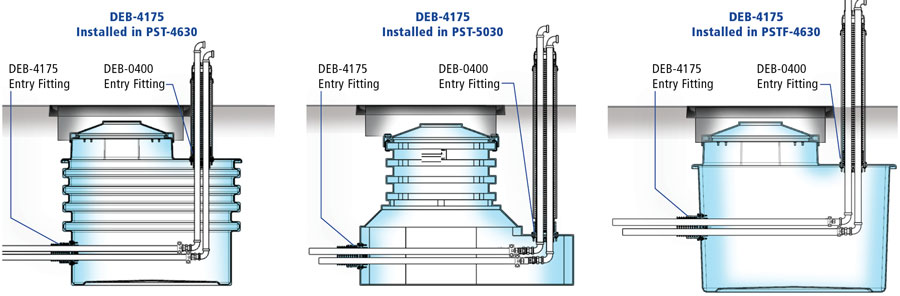

All underground connections must be contained within a flexworks tank sump or transition sump see assembly diagrams on following pages. Oil tank fill vent piping guide. This chapter shall apply to piping systems and their components used to transfer fuel oil from storage and supply tanks to oil burning appliances and equipment.

This heating oil piping article gives advice and example photos for the installation inspection leak troubleshooting of oil tank fill vent piping for both buried and above ground oil storage tanks. The system shall be designed for the maximum pressure required by the fuel oil burning applianceair or other gases shall not be used to pressurize tanks. Return piping shall connect to the top of the fuel oil tank.

Duplex or dual oil storage tanks. Questions answers about how to pipe or hook up dual or duplex heating oil storage tanks. Oil piping for duplex or paired oil storage tanks.

Piping needed for fill pipe on fuel oil tank. Sump or through a concrete slab with a flexworks fuel oil pipe transition assembly pta 4175. Flexworks fuel oil piping systems must be.

Install tanks properly. There are a number of recommendations and regulations to be followed when installing an oil tank and its piping this type of install is classified as an indoor above ground installation as opposed to an outside or buried tank. Piping arrangement conventional oil tanker basics piping arrangement there are three basic types of pipeline systems direct line system ring main system free flow systemtag.

Fuel oil piping specifications wiring diagrams. I piping trench and pipe burial requirements important. This type of piping system provides for the handling of several different types of oil.

The pipeline system illustrated above in diagram 1 is better suited to the centre line bulkhead type of ship. 82 acceptable piping materials and piping system design. Maintain tanks by regularly inspecting them and fixing minor defects before.

Critical fuel systems division of bfs industries llc. An engineering guide to modern fuel systems this publication is intended as a resource for designers installers and system operators. How duplex oil storage tanks are piped for fill vent oil lines heating oil tank fill and vent pipe requirements where should oil line fire safety valves and check valves be located.

50 oil tank piping diagram dm7q. 50 oil tank piping diagram dm7q. In this document we highlight the typical indoor components and operational requirements of modern diesel fuel or fuel oil systems.

Valves shall not be installed on return piping.
