Shower Grab Bar Placement Diagram

A shower grab bar installed on an angle. Horizontal bar should be attached to the side wall and should be as long as possible.

Shower Grab Bar Placement Bathroom Recommendations Bars Fresh Cute

Safe and accessible for injured and elderly.

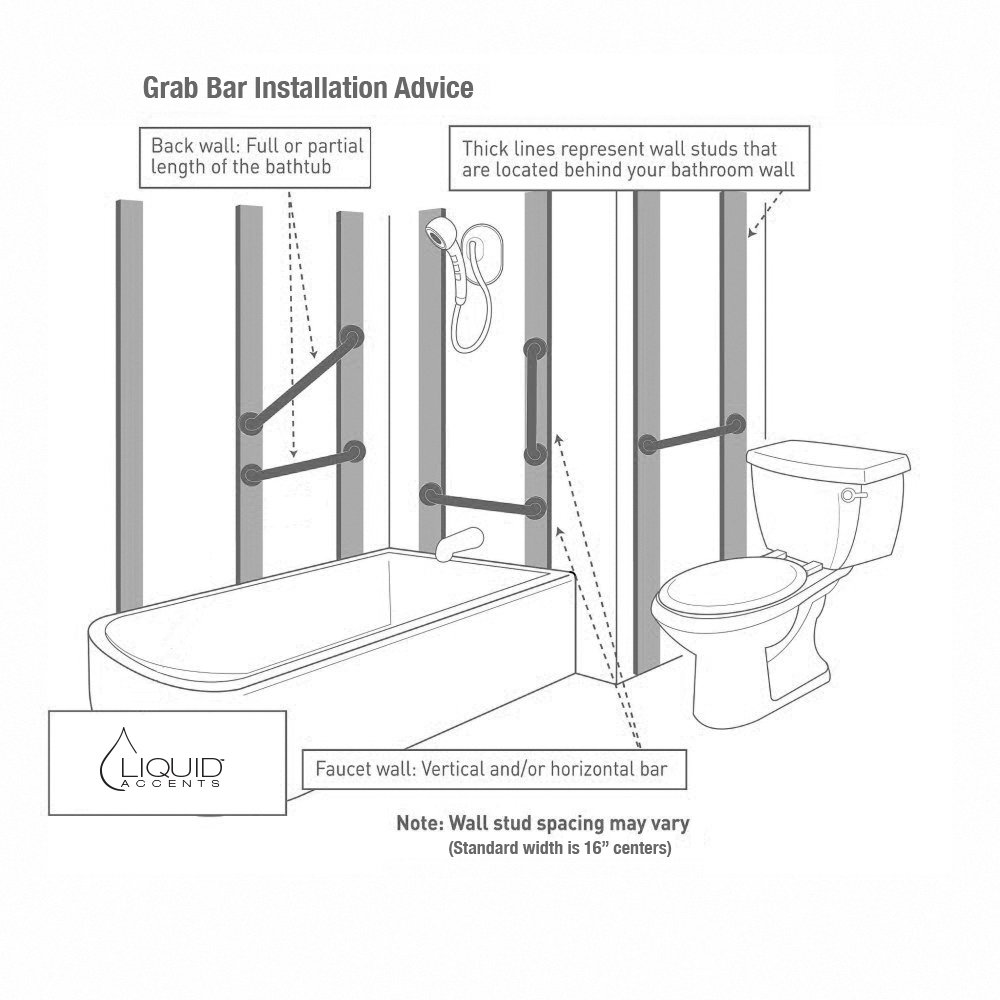

Shower grab bar placement diagram. Vertical entrance bar should be installed on the wall opposite the faucet. For placing grab bars in your bath tub or bathtub shower combination use these tips. Grab bars in addition to the horizontal bars required in accessible toilet or shower stalls.

Grab bars in toilet stall requirements. Ada grab bar requirements. Grab bars should be mounted to wall studs not sheetrock.

Master bath with bar handle and extra shower head. Rear wall grab bars shall be 36 915 mm long and. Make your bathroom safer and more versatile by adding grab bars.

Showers ada compliance for showers requires a hand held shower head with 59 1500 mm hose that can be. Note the brushed stainless steel finish and the styling of the bar. Handicap bathroom design ideas with requirement floor plan layout pictures and size.

Bathtubshower combination grab bar placement. In your bathtub or shower grab bars provide extra security for that first slippery step. It will be great when 20 years when we are older.

Here are four facts to know about bathroom grab bars if you are considering adding them to a shower tub or toilet area in your home. Side wall the side wall grab bar shall be 42 inches 1065 mm long minimum located 12 inches 305 mm maximum from the rear wall and extending 54 inches 1370 mm minimum from the rear wall. Spacious shower with built in bench grab bar and additional shower head.

Grab bar placement where to locate bathroom grab bars in a typical bathtub or walk in shower installation i usually recommend an entry grab bar on the shorter wall as well as an interior grab bar on what is commonly the longer wall. Well show you the best way to install them. Ada grab bar requirements for shower stalls bath tubs and toilet stalls.

Thats because the 2009 code requires shower seats in all accessible showers and prohibits the grab bar from extending over the shower seat. Dimensions for rear grab bar installation. It should be about 30 inches up from the tub floor.

But most installers are still using 42 inch bars which end up short of the 54 inch requirement. The simple solution of course is to use a longer bar. Bradleys ada design guide is of an advisory.

Find the studs near your proposed grab bar location using a stud sensor or one of the techniques. A shower may actually need a shorter length bar.
