You can map out the relationships and attributes of each entity. Use only the basic er model here that is entities relationships and attributes.

Er Diagram Pleasant Database Concepts Database Models Wiring Diagram

Answer 23 the er diagram is shown in figure 21.

Er diagram for university database. Date matchid stadium match player name age played seasonscore opponent own score oppscore score figure 25 e r diagram for favourite team statistics. You can edit this template and create your own diagramcreately diagrams can be exported and added to word ppt powerpoint excel visio or any other document. Design and draw an er diagram that captures the information about the university.

Be sure to indicate any key and participation constraints. Use this university er diagram for your own needs by signing up for a free lucidchart account. Figure 24 another e r diagram for marks database.

Er diagram of an university. Draw an er diagram for university database consisting of four entities i. This university database er diagram helps you visualize the data flow of crucial university information.

You can begin editing this university database er diagram template simply by signing up for a free lucidchart account. You can edit this entity relationship diagram using creately diagramming tool and include in your reportpresentationwebsite. A student has a unique id and can enroll for multiple classes and has at most one major.

A university er diagram can help you to organize and visualize crucial information on departments instructors students and courses stored in a database. The entity relationship diagram of university management system shows all the visual instrument of database tables and the relations between students faculties colleges registrations etc. Er diagram for university database.

It illustrates the entities and their relationships and attributes. Professors have an ssn a name an age a rank and a research specialty. By using one entity set many times we are missing relationships in the model.

6 chapter 2 exercise 23 consider the following information about a university database. Er diagram for college management system is a visual presentation of entities and relationships of school management software database. This er entity relationship diagram represents the model of university management system entity.

Customize the shapes lines text themes and more. A entity relationship diagram showing university database. Exercise 24 a company database needs to store information about.

For example in the e r diagram in figure 26. Login and start diagramming. Faculty and convert into tables.

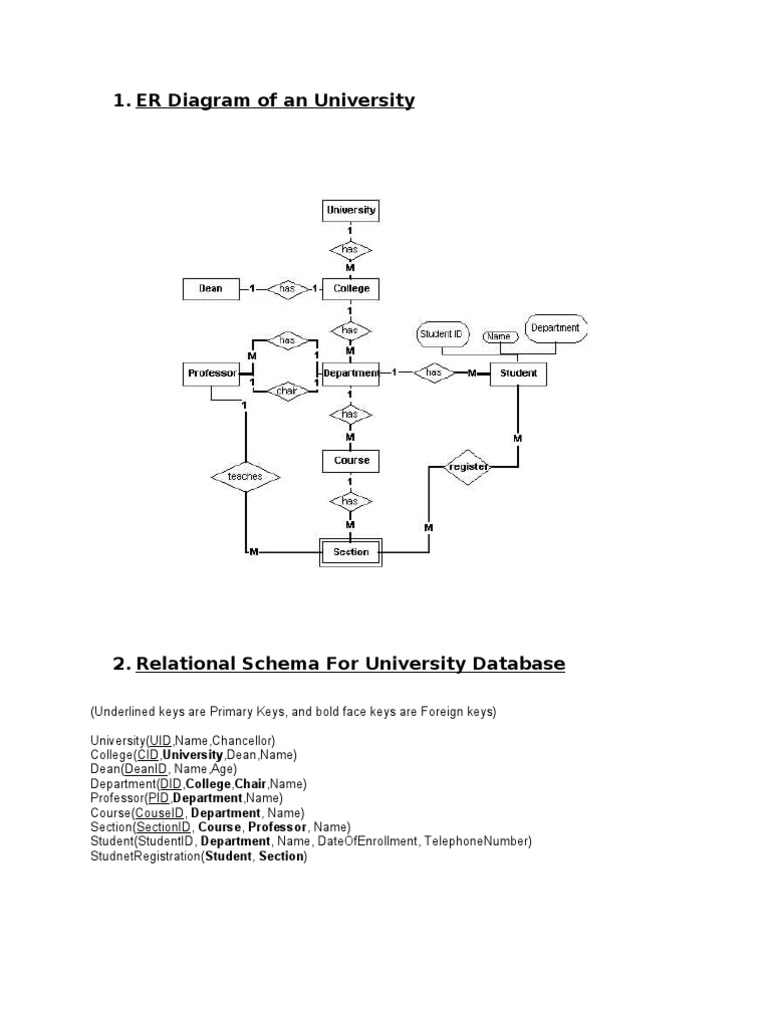

Projects have a project number a sponsor name eg nsf a starting date an ending date and a budget. Relational schema for university database underlined keys are primary keys and bold face keys are foreign keys universityuidnamechancellor collegeciduniversitydeanname deandeanid nameage departmentdidcollegechairname professorpiddepartmentname coursecouseid department name sectionsectionid course professor name student.
